Agent Concepts

After you declaratively configure an agent’s behavior (its LLM, system prompt, and tools), the framework manages execution through a reasoning loop. The LLM analyzes context, decides which tools to invoke, processes results, and repeats until the task completes. Understanding this execution model helps you fine-tune agent settings like iteration limits and tool selection.

The Agentic Data Plane is supported on BYOC clusters running with AWS and Redpanda version 25.3 and later.

After reading this page, you will be able to:

  • Explain how agents execute reasoning loops and make tool invocation decisions

  • Describe how agents manage context and state across interactions

  • Identify error handling strategies for agent failures

Agent execution model

Every agent request follows a reasoning loop. The agent doesn’t execute all tool calls at once. Instead, it makes decisions iteratively.

The reasoning loop

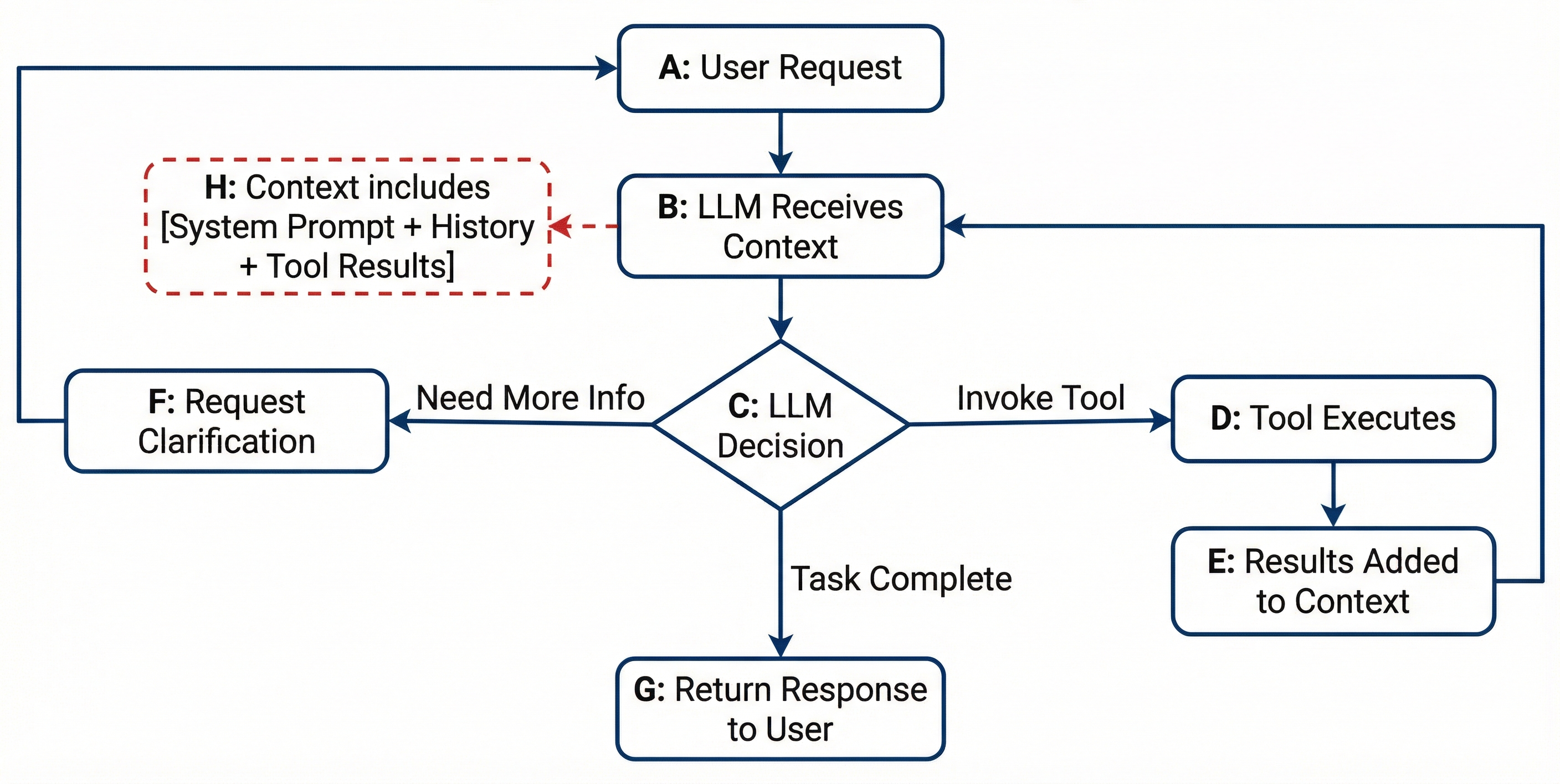

The following diagram shows how agents process requests through iterative reasoning:

Diagram showing the agent reasoning loop: User Request flows to LLM Receives Context
Figure 1. Agent reasoning loop with tool integration

When an agent receives a request:

  1. The LLM receives the context, including system prompt, conversation history, user request, and previous tool results.

  2. The LLM chooses to invoke a tool, requests more information, or responds to user.

  3. The tool runs and returns results if invoked.

  4. The tool’s results are added to conversation history.

  5. The LLM reasons again with an expanded context.

The loop continues until one of these conditions is met:

Diagram showing exit conditions: Task Complete returns response
Figure 2. Reasoning loop exit conditions

  • Agent completes the task and responds to the user

  • Agent reaches max iterations limit

  • Agent encounters an unrecoverable error

If the agent encounters an unrecoverable error on the first iteration, it returns an error immediately. Unrecoverable errors include authentication failures, invalid tool configurations, or LLM API failures.

Why iterations matter

Each iteration includes three phases:

  1. LLM reasoning: The model processes the growing context to decide the next action.

  2. Tool invocation: If the agent decides to call a tool, execution happens and waits for results.

  3. Context expansion: Tool results are added to the conversation history for the next iteration.

With higher iteration limits, agents can complete complex tasks but can cost more and take longer.

With lower iteration limits, agents can respond faster and are cheaper but may fail on complex requests.

Cost calculation

Calculate the approximate cost per request by estimating average context tokens per iteration:

Cost per request = (iterations x context tokens x model price per token)

Example with 30 iterations at $0.000002 per token:

Iteration 1:  500 tokens x $0.000002 = $0.001
Iteration 15: 2000 tokens x $0.000002 = $0.004
Iteration 30: 4000 tokens x $0.000002 = $0.008

Total: ~$0.013 per request

Actual costs vary based on:

  • Tool result sizes (large results increase context)

  • Model pricing (varies by provider and model tier)

  • Task complexity (determines iteration count)

Setting max iterations creates a cost/capability trade-off:

Limit Range Use Case Cost

Low

10-20

Simple queries, single tool calls

Cost-effective

Medium

30-50

Multi-step workflows, tool chaining

Balanced

High

50-100

Complex analysis, exploratory tasks

Higher

Iteration limits prevent runaway costs when agents encounter complex or ambiguous requests.

MCP tool invocation patterns

MCP tools extend agent capabilities beyond text generation. Understanding when and how tools execute helps you design effective tool sets.

Synchronous tool execution

In Redpanda Cloud, tool calls block the agent. When the agent decides to invoke a tool, it pauses and waits while the tool executes (querying a database, calling an API, or processing data). When the tool returns its result, the agent resumes reasoning.

This synchronous model means latency adds up across multiple tool calls, the agent sees tool results sequentially rather than in parallel, and long-running tools can delay or fail agent requests due to timeouts.

Tool selection decisions

The LLM decides which tool to invoke based on system prompt guidance (such as "Use get_orders when customer asks about history"), tool descriptions from the MCP schema that define parameters and purpose, and conversation context where previous tool results influence the next tool choice. Agents can invoke the same tool multiple times with different parameters if the task requires it.

Tool chaining

Agents chain tools when one tool’s output feeds another tool’s input. For example, an agent might first call get_customer_info(customer_id) to retrieve details, then use that data to call get_order_history(customer_email).

Tool chaining requires sufficient max iterations because each step in the chain consumes one iteration.

Tool granularity considerations

Tool design affects agent behavior. Coarse-grained tools that do many things result in fewer tool calls but less flexibility and more complex implementation. Fine-grained tools that each do one thing require more tool calls but offer higher composability and simpler implementation.

Choose granularity based on how often you’ll reuse tool logic across workflows, whether intermediate results help with debugging, and how much control you want over tool invocation order.

For tool design guidance, see MCP Tool Design.

Context and state management

Agents handle two types of information: conversation context (what’s been discussed) and state (persistent data across sessions).

Conversation context

The agent’s context includes the system prompt (always present), user messages, agent responses, tool invocation requests, and tool results.

As the conversation progresses, context grows. Each tool result adds tokens to the context window, which the LLM uses for reasoning in subsequent iterations.

Context window limits

LLM context windows limit how much history fits. Small models support 8K-32K tokens, medium models support 32K-128K tokens, and large models support 128K-1M+ tokens.

When context exceeds the limit, the oldest tool results get truncated, the agent loses access to early conversation details, and may ask for information it already retrieved.

Design workflows to complete within context limits. Avoid unbounded tool chaining.

Service account authorization

When you create a mcp-server or ai-agent, Redpanda Cloud automatically creates a service-account to authentication requests to your cluster.

Default configuration

The service account is created with:

  • Name: Pre-filled as cluster-<cluster-id>-<resource-type>-<resource-name>-sa, where sa stands for service account. For example:

    • MCP server: cluster-d5tp5kntujt599ksadgg-mcp-my-test-server-sa

    • AI agent: cluster-d5tp5kntujt599ksadgg-agent-my-agent-sa

      You can customize this name during creation.

  • Role binding: Cluster scope with Writer role for the cluster where you created the resource. This allows the resource to read and write data, manage topics, and access cluster resources.

Manage service accounts

You can view and manage service accounts created for MCP servers and AI agents in Organization > IAM > Service accounts.

The Organization IAM page shows additional details not visible during creation:

Field Description

Client ID

Unique identifier for OAuth2 authentication

Description

Optional description of the service account

Created at

Timestamp when the service account was created

Updated at

Timestamp of the last modification

From this page you can:

  • Edit the service account name or description

  • View and manage role bindings

  • Rotate credentials

  • Delete the service account

Deleting a service account removes authentication for the associated MCP server or AI agent. The resource can no longer access cluster data.

Customize role bindings

The default Writer role provides broad access suitable for most use cases. If you need more restrictive permissions:

  1. Exit the cluster. Navigate to Organization IAM > Service accounts.

  2. Find the service account for your resource.

  3. Edit the role bindings to use a more restrictive role or scope.

For more about roles and permissions, see Role-based access control.
