Agentic Data Plane

Register a Self-Managed MCP Server

Register your existing MCP server with Redpanda to add authentication and observability without changing your server’s code. This guide covers the self-managed path from Create an MCP Server in depth. Choose this when you already run a server and want Redpanda to proxy it.

After completing this guide, you will be able to:

  • Register a self-managed MCP server in Agentic Data Plane

  • Pick the right transport (SSE vs. Streamable HTTP) and authentication mode

  • Confirm tool discovery completed and the server is reachable through its proxy URL

When to use this

Choose self-managed registration when:

  • The MCP server is already deployed in your environment and you don’t want to migrate it to a managed type.

  • You need custom tool logic that no managed type provides.

  • You want a Redpanda-managed URL for each server, with Inspector, observability, and agent access, without standing up your own gateway.

If you don’t already run a server, use a managed type. See Managed catalog.

Prerequisites

  • An MCP server reachable from the AI Gateway. The AI Gateway doesn’t connect to loopback, cloud metadata, link-local, multicast, IPv6 unique local, or unspecified addresses, or to your environment’s own VPC, pod, and service address ranges, except cluster-local services your environment has been enabled to reach.

  • The endpoint URL. http:// is allowed except with user-delegated OAuth and service-account OAuth, which require https://. User-delegated OAuth has one exception, for cluster-local servers (see Troubleshooting).

  • Knowledge of which transport the server speaks (SSE or Streamable HTTP). If you don’t know, see Transport choice.

  • If using static-key or service-account-OAuth: secrets pre-created in the Redpanda Agentic Data Plane secret store, UPPER_SNAKE_CASE.

  • If using user-delegated OAuth with automatic setup: nothing, when the server supports dynamic client registration. If it doesn’t, register an OAuth app with the upstream vendor and have its client ID ready, plus a client-secret reference in the secret store for a confidential app.

  • If attaching an OAuth provider your organization already manages instead: the provider registered first. See User-delegated OAuth.

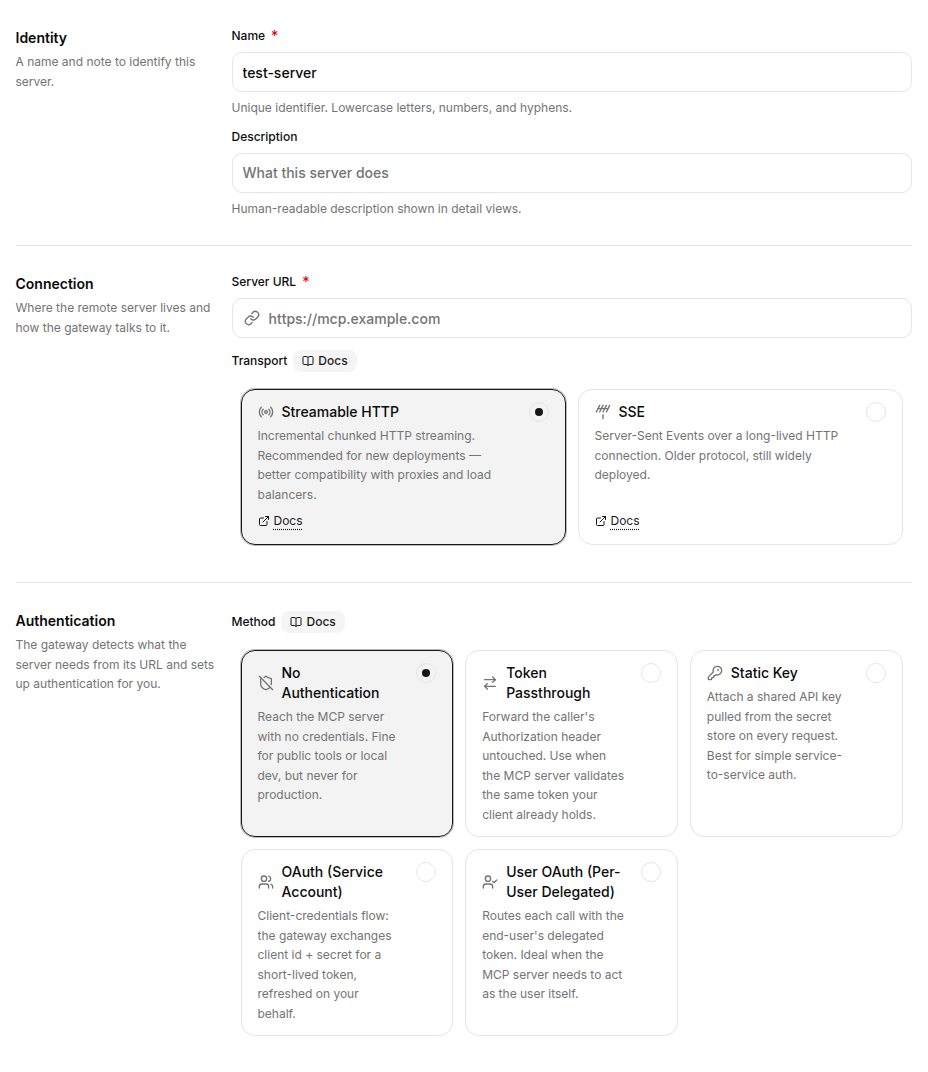

Create the server

  1. Open MCP servers in the sidebar and click Add MCP server.

  2. In the marketplace picker, click Remote (Proxied).

  3. In the Identity section, replace the suggested Name and optionally add a Description. The constraints are the same as in Create an MCP Server.

  4. In the Connection section, enter the Server URL and pick the Transport.

  5. Configure authentication (see Authentication).

  6. Click Create server.

Transport choice

Two transports are available:

  • Streamable HTTP: The current MCP transport, recommended for new servers.

  • SSE: Server-sent events. The older MCP transport, still widely deployed.

Pick whichever your server actually speaks. To probe a server quickly:

# SSE handshake: expect a stream of `event:` lines on success.
curl -N -H "Accept: text/event-stream" https://your-server.example.com/mcp/sse

# Streamable HTTP: expect a JSON-RPC response (JSON or an SSE stream) on success.
curl -X POST -H "Content-Type: application/json" \
  -H "Accept: application/json, text/event-stream" \
  -d '{"jsonrpc":"2.0","id":1,"method":"initialize","params":{"protocolVersion":"2025-06-18","capabilities":{},"clientInfo":{"name":"probe","version":"1.0"}}}' \
  https://your-server.example.com/mcp

Authentication

The authentication modes from Create an MCP Server all apply. Several patterns are particularly common for self-managed servers:

Pattern Use when

Static key with a custom header

First-party servers that authenticate with a non-Authorization header. Provide a Header name (for example, X-Api-Key) and a Key reference pointing at an UPPER_SNAKE_CASE secret.

Service-account OAuth

The upstream system supports OAuth client credentials and you want one shared identity for all callers. The server URL must use https://. Provide the Client ID, Client secret reference, Token URL, and any required Scopes.

Token passthrough

The upstream server already validates client tokens. Redpanda forwards the caller’s Authorization header.

For user-delegated OAuth, the URL must be https://, unless it addresses a server inside your own cluster and cluster-local addressing has been enabled for your environment. Redpanda can set up OAuth automatically for the server, or you can attach an OAuth provider you already registered. See User-delegated OAuth.

Tool discovery

After create, Redpanda runs a live tools/list against the server and shows the result on the detail page’s Overview tab. The Inspector tab (see Test a server’s tools) exercises individual tools.

If the tools list is empty or stale, open the Inspector tab, click Session details, and then click Refresh to re-run discovery against the server.

Connection errors and retry

Error What it means

connection_required (OAuthConnectionRequired in the API)

The user-delegated authentication path has no stored connection for the calling user. The failed tool result carries the authorization URL so the user can complete the consent flow, then call the tool again. See User-delegated OAuth.

token_expired (OAuthTokenExpired in the API)

The user’s stored token has expired and refresh failed. Have the user reconnect.

Plain connection error / 502 / 504

Redpanda couldn’t reach your server. The Overview tab and the Inspector tools list show the upstream error.

Troubleshooting

Symptom What to check

"Transport mismatch" or empty stream

Your server speaks the other transport. Re-probe with curl per Transport choice and update the Transport field on the server’s edit page.

TLS errors when registering an https:// URL

Confirm the server’s certificate chains to a public CA. Self-signed certs aren’t supported.

401 Unauthorized from the upstream

Authentication is misconfigured. For static-key or service-account OAuth, verify the secret content and the Header name. For token passthrough, confirm the caller is sending an Authorization header.

Tool schema parse errors

The server returned a tools/list response with an invalid JSON schema for one or more tool inputs. Fix the upstream tool’s schema and refresh.

The URL is refused for targeting a cluster-local host

A URL whose host ends in .svc or .svc.cluster.local is refused for every authentication mode unless cluster-local addressing has been enabled for your environment. Give the server’s externally reachable address instead, or contact Redpanda to enable it. Where it is enabled, a cluster-local URL is also the one case where user-delegated OAuth accepts http://, because that hop stays inside your own cluster network.
