LEFT JOIN

The LEFT JOIN returns all matching records from the left table combined with the right table. Even if there are no matching records in the right table, the LEFT JOIN still returns a row in the result, with NULL in each column from the right table.

LEFT JOIN is also known as LEFT OUTER JOIN.

Syntax

SELECT column_1, column_2...
FROM table_1
LEFT JOIN table_2
ON table_1.matching_field = table_2.matching_field;

In this syntax:

  1. SELECT column_1, column_2…​ defines the columns from both tables where the data is to be selected.

  2. FROM table_1 defines the left table as the main table in the FROM clause.

  3. LEFT JOIN table_2 defines the right table as the table the main table joins.

  4. ON table_1.matching_field = table_2.matching_field sets the join condition after the ON keyword with the matching field between the two tables.

Table alias

A table alias is a temporary name given to a table in a query. Aliases don’t change the result; they make queries easier to read.

SELECT A.column_1, B.column_2...
FROM table_1 A
LEFT JOIN table_2 B
ON A.matching_field = B.matching_field;

Examples

Create the item table:

CREATE TABLE item (
  item_no int NOT NULL,
  item_name text
);

INSERT INTO item
    (item_no,item_name)
VALUES
    (111,'Butter'),
    (113,'Tea'),
    (116,'Bread'),
    (119,'Coffee');
SELECT * FROM item;

This returns:

+-----------+----------------+
| item_no   | item_name      |
+-----------+----------------+
| 111       | Butter         |
| 113       | Tea            |
| 116       | Bread          |
| 119       | Coffee         |
+-----------+----------------+

Create the invoice table:

CREATE TABLE invoice (
  inv_no int NOT NULL,
  item int,
  sold_qty int,
  sold_price int
);

INSERT INTO invoice
    (inv_no, item, sold_qty, sold_price)
VALUES
    (020219,111,3,9000),
    (020220,116,6,30000),
    (020221,116,2,10000),
    (020222,116,1,5000),
    (020223,119,5,20000),
    (020224,119,4,16000);
SELECT * FROM invoice;

This returns:

+----------+---------+-----------+-------------+
| inv_no   | item    | sold_qty  | sold_price  |
+----------+---------+-----------+-------------+
| 20219    | 111     | 3         | 9000        |
| 20220    | 116     | 6         | 30000       |
| 20221    | 116     | 2         | 10000       |
| 20222    | 116     | 1         | 5000        |
| 20223    | 119     | 5         | 20000       |
| 20224    | 119     | 4         | 16000       |
+----------+---------+-----------+-------------+

A LEFT JOIN query against these tables:

SELECT item_no, item_name, sold_qty, sold_price
FROM item
LEFT JOIN invoice
ON item.item_no = invoice.item;

  • The item table is the left table, and the invoice table is the right table.

  • The query combines values from the item table using item_no and matches records using the item column from the invoice table.

  • When records match, Redpanda SQL creates a new row with item_no, item_name, sold_qty, and sold_price columns as defined in the SELECT clause.

  • Otherwise, a new row is created with NULL values from the right table (invoice).

The query returns:

+-----------+-------------+------------+---------------+
| item_no   | item_name   | sold_qty   | sold_price    |
+-----------+-------------+------------+---------------+
| 111       | Butter      | 3          | 9000          |
| 113       | Tea         | null       | null          |
| 116       | Bread       | 6          | 30000         |
| 116       | Bread       | 2          | 10000         |
| 116       | Bread       | 1          | 5000          |
| 119       | Coffee      | 5          | 20000         |
| 119       | Coffee      | 4          | 16000         |
+-----------+-------------+------------+---------------+

Based on the data from the item and invoice tables:

  • The result matches the total items in the item table: four items.

  • The result displays all items from the left table (item), even if one item has not been sold.

  • Item id 111 (Butter) has been sold once for 3 pieces at 9000.

  • Item id 113 (Tea) has never been sold, so the sold_qty and sold_price columns are NULL.

  • Item id 116 (Bread) has been sold three times: 6 pieces at 30000, 2 pieces at 10000, and 1 piece at 5000.

  • Item id 119 (Coffee) has been sold twice: 5 pieces at 20000 and 4 pieces at 16000.

An item can have zero or many invoices. An invoice belongs to zero or one item.

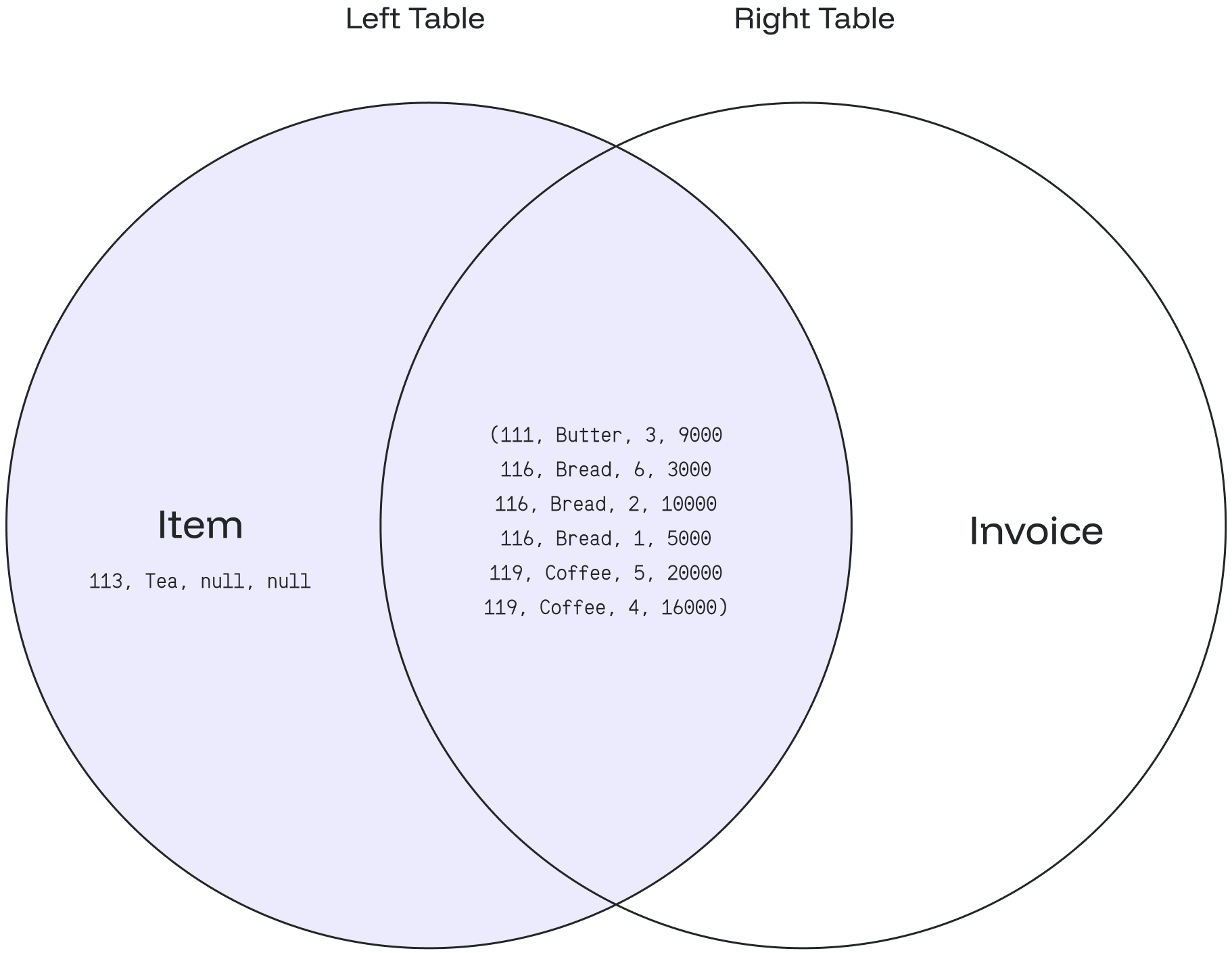

The following Venn diagram illustrates the LEFT JOIN:

Venn diagram showing a left join between the Item and Invoice tables
