OUTER JOIN

The OUTER JOIN (also known as FULL OUTER JOIN) returns all the records from the selected fields between the two tables (left and right), whether the join condition is met or not.

Inner join vs. outer join

An INNER JOIN returns only matched rows. An OUTER JOIN returns all rows from both tables, whether matched or not.

Syntax

SELECT column_1, column_2...
FROM table_1
FULL OUTER JOIN table_2
ON table_1.matching_field = table_2.matching_field;

In this syntax:

  1. SELECT column_1, column_2…​ defines the columns from both tables to display data.

  2. FROM table_1 represents table_1 as the left table in the FROM clause.

  3. FULL OUTER JOIN table_2 represents table_2 as the right table in the FULL OUTER JOIN condition.

  4. ON table_1.matching_field = table_2.matching_field sets the join condition after the ON keyword with the matching field between the two tables.

Table alias

A table alias is a temporary name given to a table in a query. Aliases don’t change the result; they make queries easier to read.

SELECT A.column_1, B.column_2...
FROM table_1 A
FULL OUTER JOIN table_2 B
ON A.matching_field = B.matching_field;

If there are no matched records from the joined tables, NULL values are returned in every column of the table that does not have the matching record.

Examples

Create the departments table:

CREATE TABLE departments (
    department_id int,
    department_name text
);
INSERT INTO departments (department_id,department_name)
VALUES
    (1001, 'Sales'),
    (1002, 'Marketing'),
    (1003, 'HR'),
    (1004, 'Project'),
    (1005, 'Product');
SELECT * FROM departments;

This returns:

+----------------+------------------+
| department_id  | department_name  |
+----------------+------------------+
| 1001           | Sales            |
| 1002           | Marketing        |
| 1003           | HR               |
| 1004           | Project          |
| 1005           | Product          |
+----------------+------------------+

Create the employee table:

CREATE TABLE employee (
    employee_id int,
    employee_name text,
    dept_id int
);
INSERT INTO employee (
    employee_id,
    employee_name,
    dept_id
)
VALUES
    (2001,'Tony Stark', 1002),
    (2002,'Christian Bale', 1002),
    (2003,'Anne Hailey', 1003),
    (2004,'Wilson Cliff', 1004),
    (2005,'Susan Oh', 1001),
    (2006,'Julian Robert', 1001),
    (2007,'Gilbert Tom', null);
SELECT * FROM employee;

This returns:

+--------------+-------------------+------------+
| employee_id  | employee_name     | dept_id    |
+--------------+-------------------+------------+
| 2001         | Tony Stark        | 1002       |
| 2002         | Christian Bale    | 1002       |
| 2003         | Anne Hailey       | 1003       |
| 2004         | Wilson Cliff      | 1004       |
| 2005         | Susan Oh          | 1001       |
| 2006         | Julian Robert     | 1001       |
| 2007         | Gilbert Tom       | null       |
+--------------+-------------------+------------+

FULL OUTER JOIN

A FULL OUTER JOIN query against these tables:

SELECT employee_name, department_name
FROM departments
FULL OUTER JOIN employee
ON departments.department_id = employee.dept_id;

The result shows every department with an employee, the employees who work under a specific department, every department that does not have any employees, and the employees who do not belong to a specific department.

+-------------------+-------------------+
| employee_name     | department_name   |
+-------------------+-------------------+
| Julian Robert     | Sales             |
| Susan Oh          | Sales             |
| Christian Bale    | Marketing         |
| Tony Stark        | Marketing         |
| Anne Hailey       | HR                |
| Wilson Cliff      | Project           |
| Gilbert Tom       | null              |
| null              | Product           |
+-------------------+-------------------+

The following Venn diagram illustrates the FULL OUTER JOIN:

Venn diagram showing a full outer join between the Departments and Employee tables

FULL OUTER JOIN with WHERE clause

Find departments with no employees

  1. To find departments that do not have any employees, add a WHERE clause with NULL:

    SELECT employee_name, department_name
FROM departments
FULL OUTER JOIN employee
ON departments.department_id = employee.dept_id
WHERE employee_name IS NULL;

  2. The query returns:

    +------------------+--------------------+
| employee_name    | department_name    |
+------------------+--------------------+
| null             | Product            |
+------------------+--------------------+

The result indicates that the Product department has no employees.

Find employees with no department

  1. To find employees who do not belong to any department, add a WHERE clause with NULL:

    SELECT employee_name, department_name
FROM employee
FULL OUTER JOIN departments
ON employee.dept_id = departments.department_id
WHERE department_name IS NULL;

  2. The query returns:

    +------------------+--------------------+
| employee_name    | department_name    |
+------------------+--------------------+
| Gilbert Tom      | null               |
+------------------+--------------------+

The result shows that Gilbert Tom does not belong to any department.

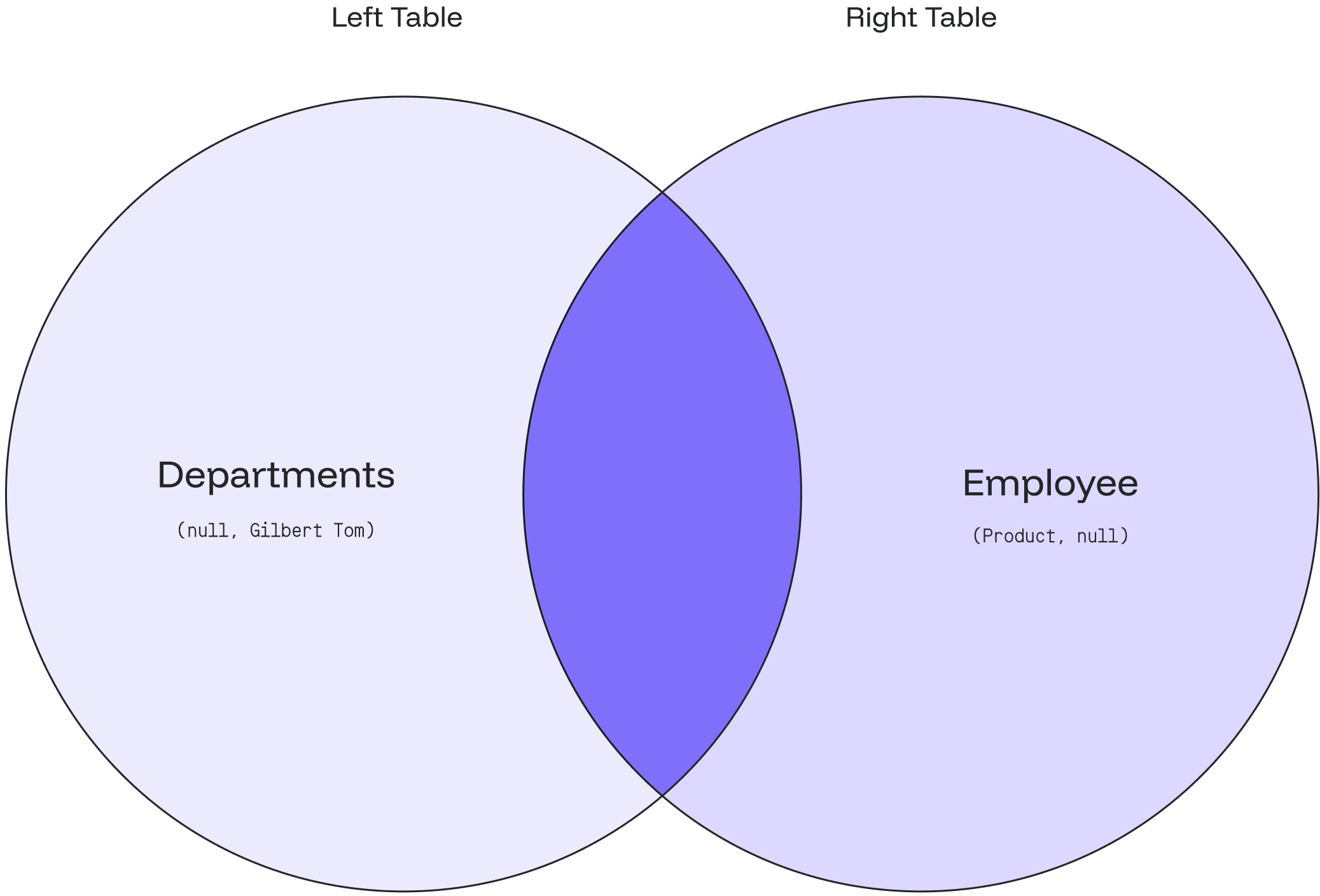

The following Venn diagram illustrates the FULL OUTER JOIN with WHERE clause filtering for NULL values:

Venn diagram showing a full outer join with WHERE clause filtering for NULL values
